Cultivated pergola Solaire 376x220cm

Unopiu

1.056,72 € ~~1.428,00 €~~

Tax included. Shipping calculated at checkout.

canopy:

Floor fastening washers:

Variant

Versand: approx. 4-6 weeks

Wir beraten Sie gerne unter

+49 381 510 86 31

Description

The curvedattached pergolaSolaire is very versatile, which makes it unique. It can be adapted to different local conditions on site.

TheUnopiu attached pergola SolaireMade of galvanized iron, its shape and material correspond to the typical Mediterranean style. It provides shade, creates intimate outdoor retreats and, last but not least, enhances gardens and terraces.

Thanks to the versatility of thisSolaire collectionA “tailor-made” ambience can be created that meets all requirements and wishes. The curvedUnopiuThe Solaire extension pergola can be extended with extension elements of 186 cm.

For the roof, you can choose between a non-adjustable roof or a sliding roof made of fabric covering and bamboo mats.

Thepost dimensionsare Ø 3cm and height 250cm.
The corresponding height on the wallfor the curved pergolas is 290cm for the 220cm deep model.
Mounting material not included.

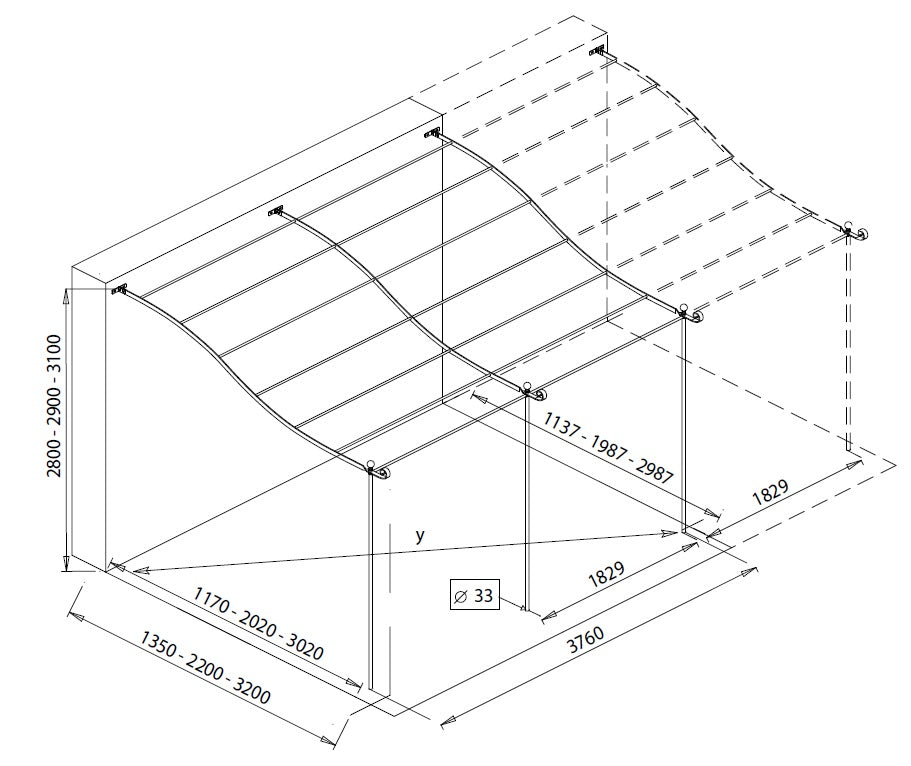

dimension

Dimensions: B376 xT220 cm
Distance from wall to front post:2.02 m
Height on the wall:290 cm
Front post dimensions: O3.3 cm xH250 cm (post can be shortened)

Further information

material: galvanized iron
Color: graphite gray
Mounting on the wall:Mounting material (screws, dowels...) not included
Attachment to the ground:For optimal support, the manufacturer recommends encasing the posts in concrete; alternatively, depending on the subsurface, ground fixing discs can be used
Optional accessories:
· Floor mounting discs(Fixing disc for a post on the ground complete with 3 expansion dowels 10 mm)

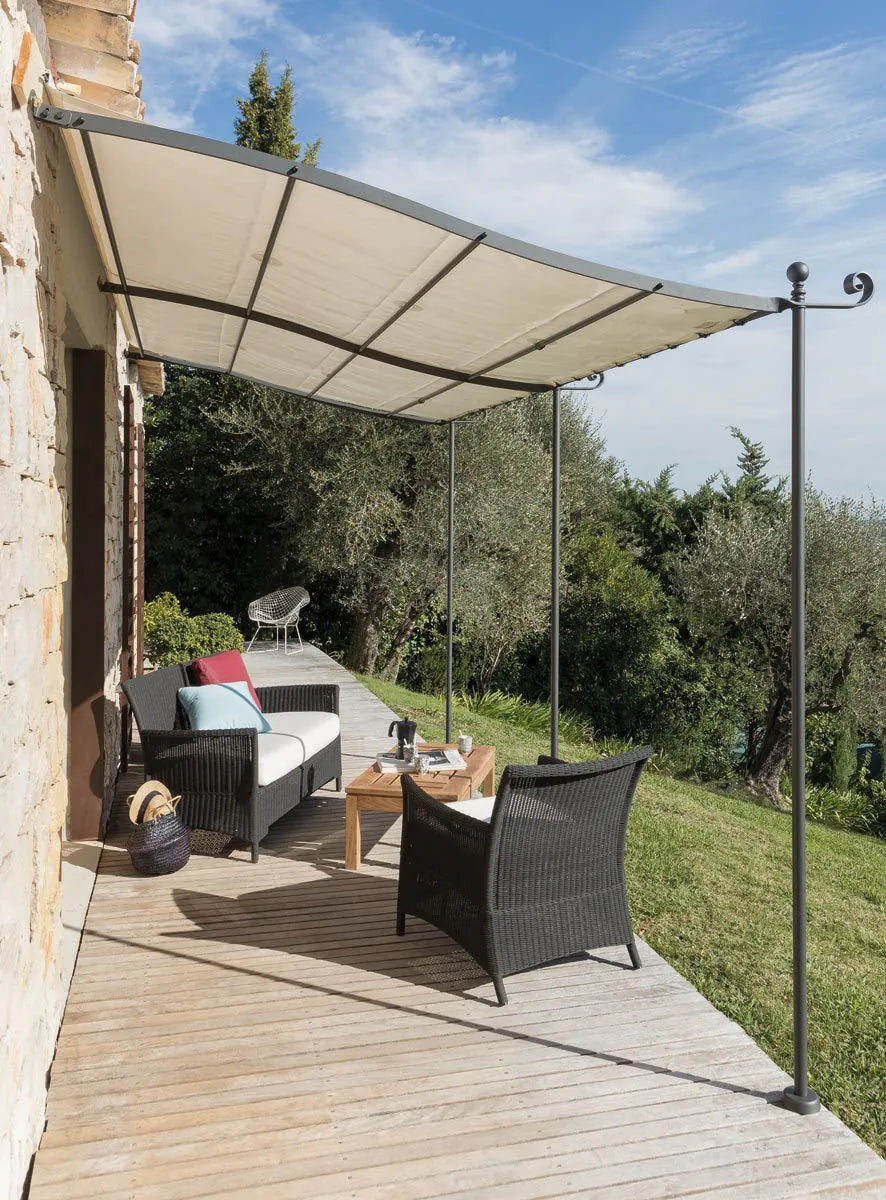

· waterproof tarpaulin(29% Polyester - 71% PVC), complete with fastening elements

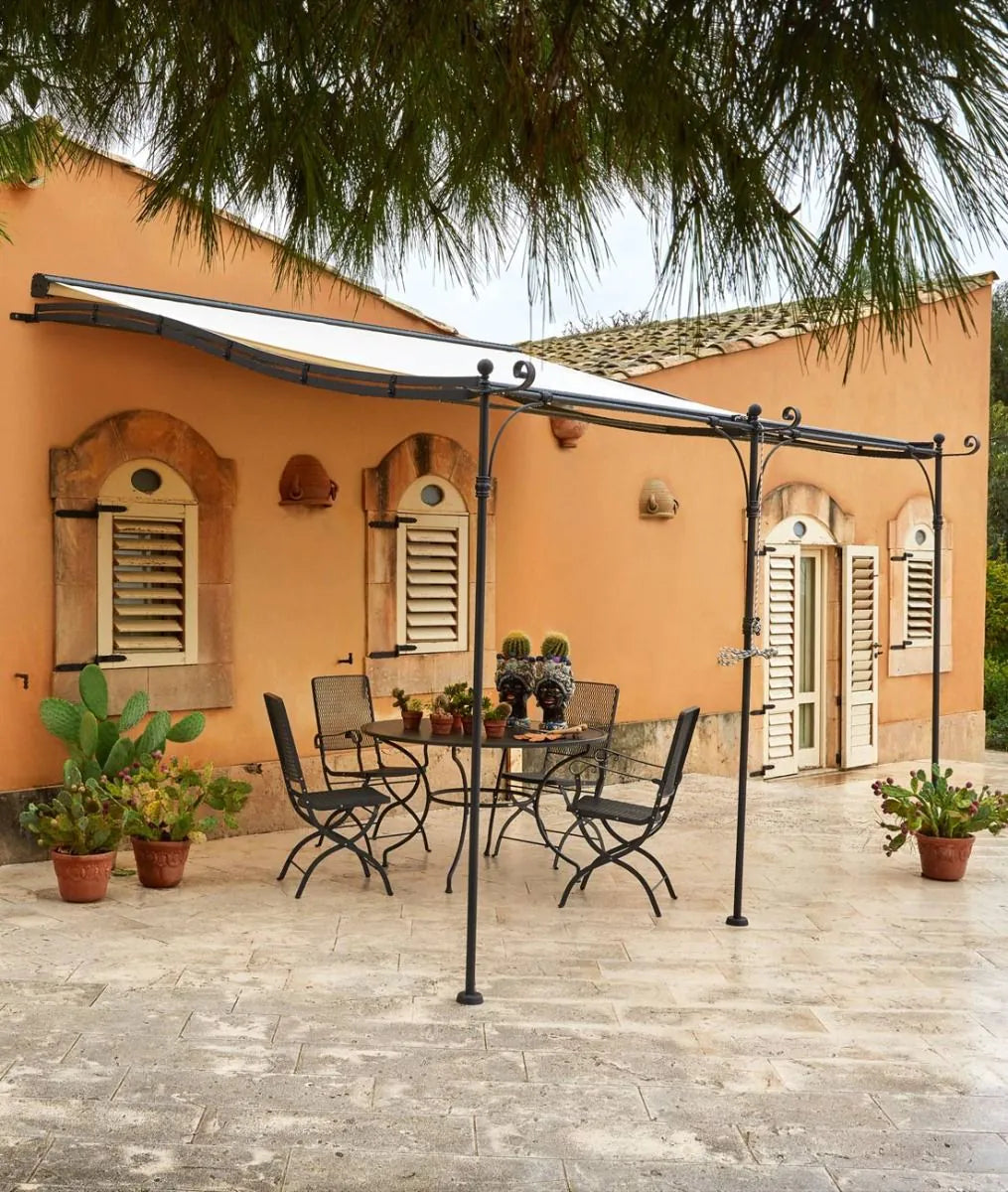

· Spring-loaded roller blind with waterproof tarpaulin:(Kit for spring-loaded roller blind with waterproof white tarpaulin (29% polyester with 71% PVC coating), complete with graphite grey coated aluminium cover, spring mechanism and rails for attached pergolas and extensions)

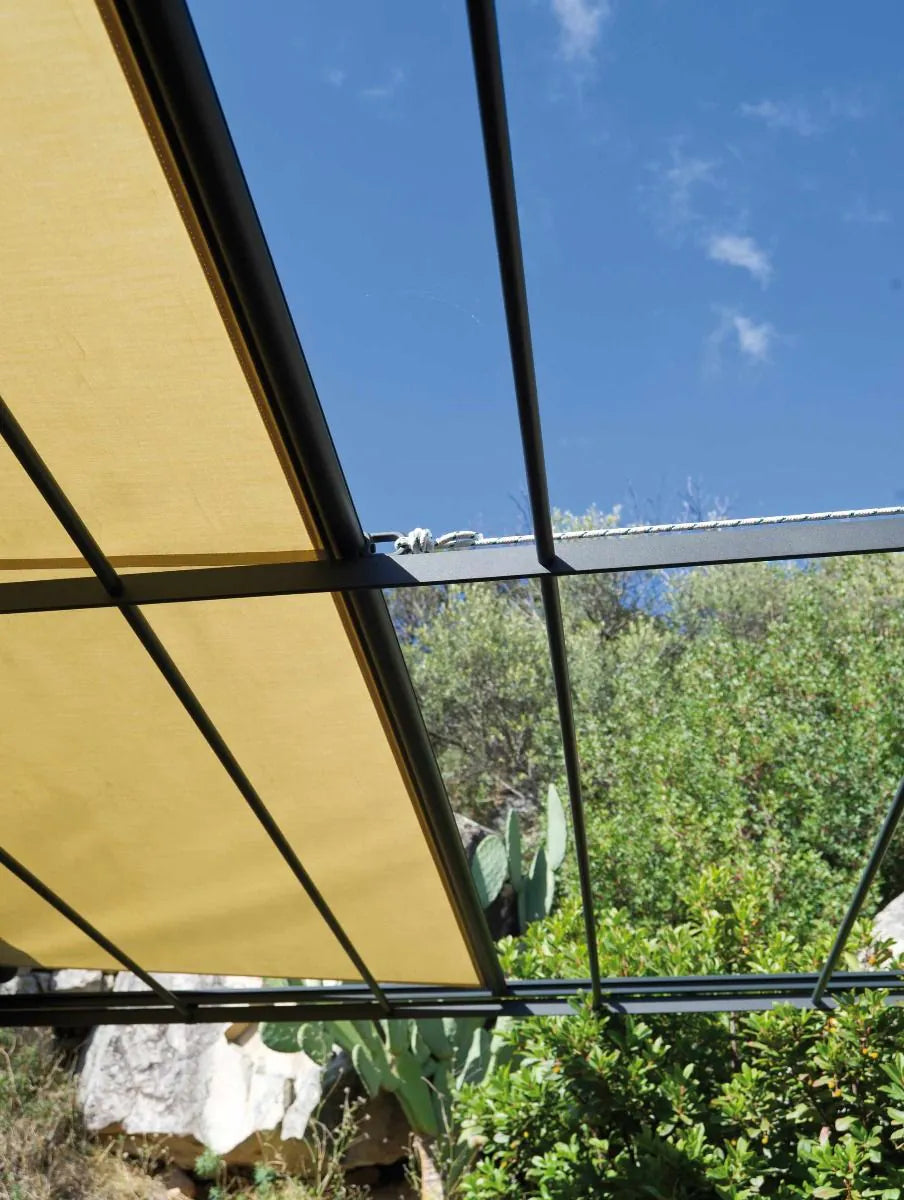

· Spring-loaded roller blind with awning fabric(Kit for spring-loaded roller blind made of 100% natural-coloured acrylic fabric, complete with graphite grey coated aluminium cover, spring mechanism and rails for attached pergolas and extensions.

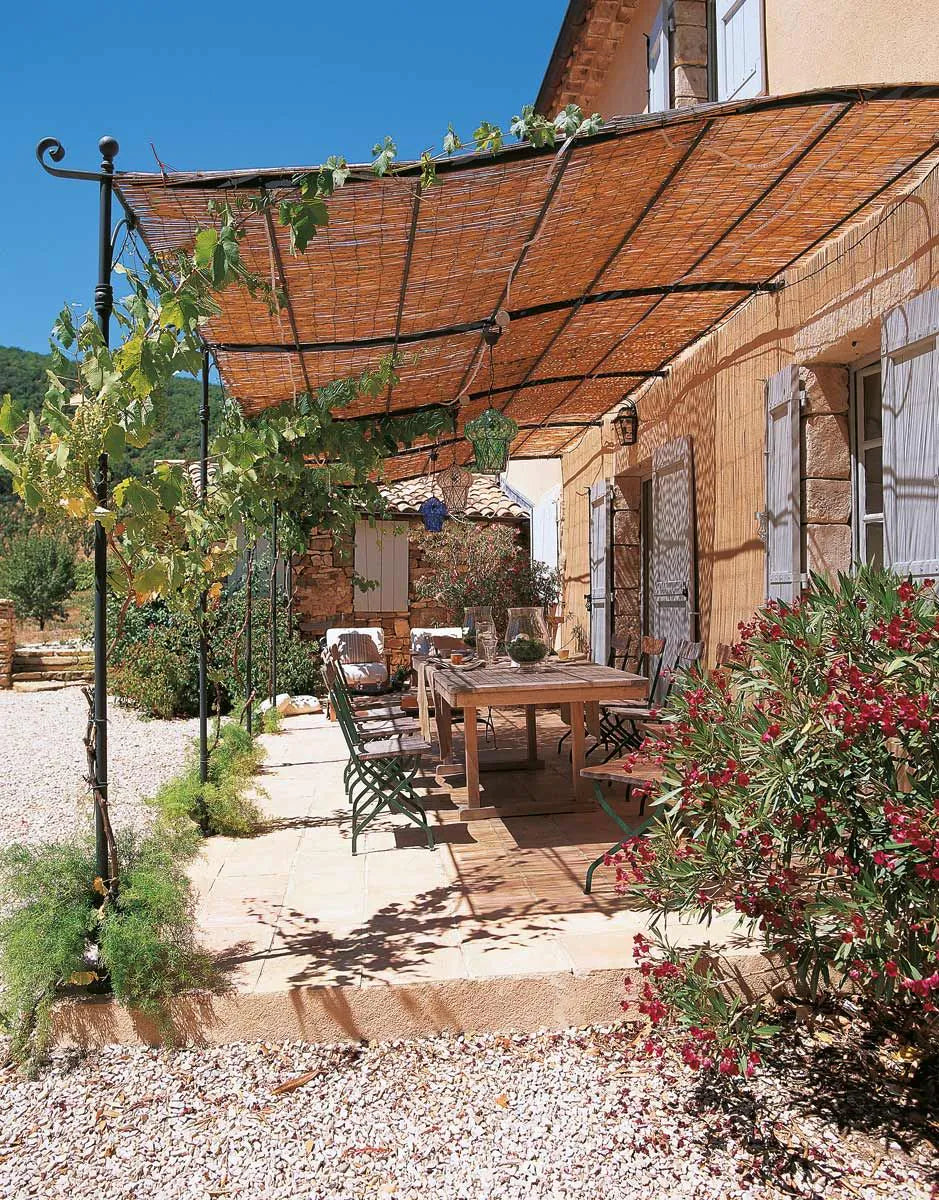

· Bamboo mats(Set of bamboo mats made from bamboo sticks with variable cutting diameter (from 1 cm to approx. 2 cm), connected with stainless steel wire, complete with fastening material)
· Extensions:eachB186 xT220 cm
Installation information optional spring-loaded roller blind: The box for spring-loaded roller blinds is 14 cm high. In addition, a distance of approx. 9 cm from the pergola must be maintained. It is important to maintain this height with PVC tarpaulins so that the water can drain away. With acrylic roller blinds, the distance of 9 cm can be reduced a little if you do not have much space, as these are not waterproof.
Installation of optional bamboo mats: The bamboo mats must be adapted to the pergola: the excess bamboo stalks must be removed and the bamboo mats partially overlapped so that the entire area is covered.

installation
Assembly instructions for the Unopiu extension pergola Solaire
Installation instructions for the Unopiu Solaire spring-loaded roller blind
