Cultivated pergola Solaire 376x320 cm

1.483,20 € ~~1.648,00 €~~

Tax included. Shipping calculated at checkout.

canopy:

Floor fastening washers:

Variant

Versand: approx. 4-6 weeks

Wir beraten Sie gerne unter

+49 381 510 86 31

Description

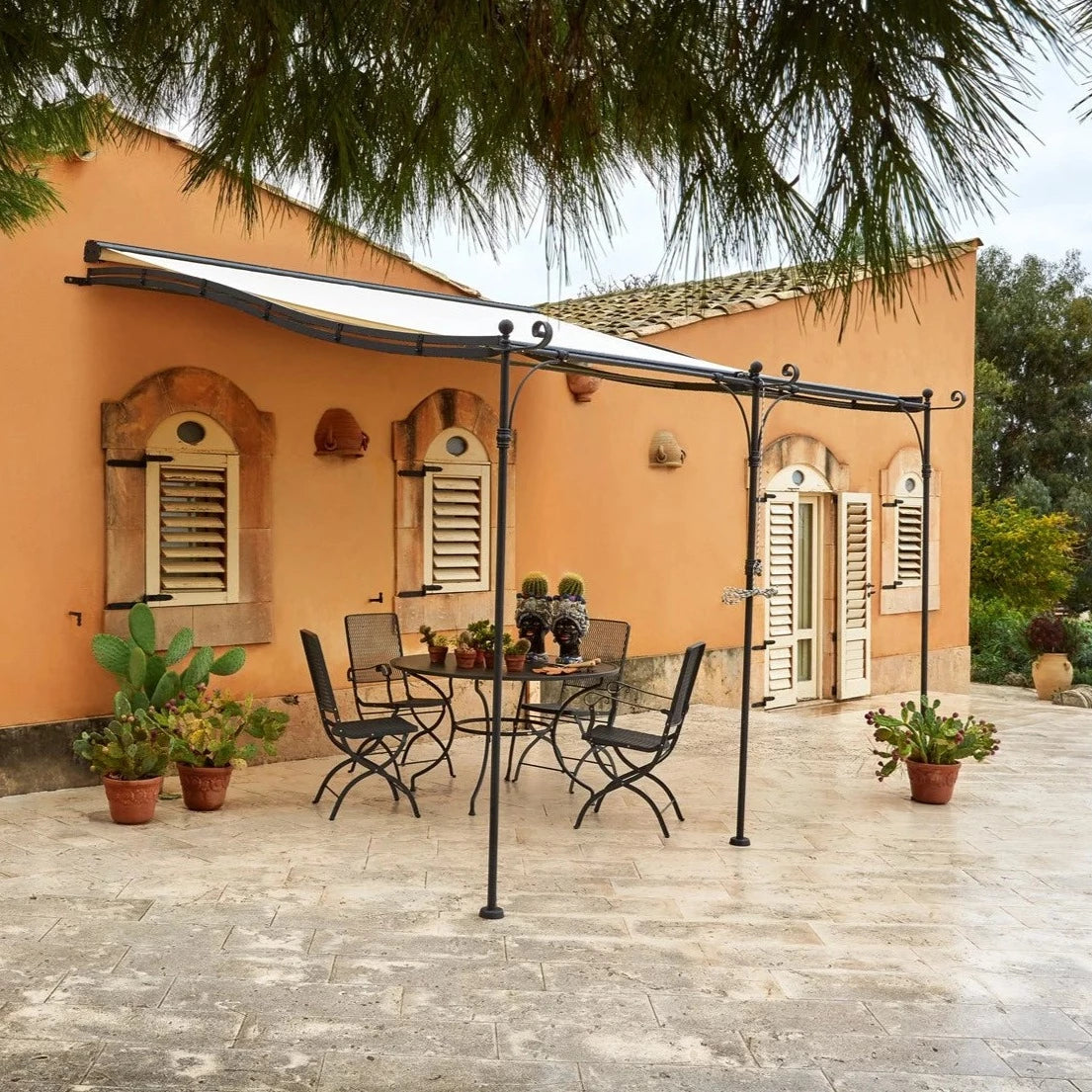

Give your outdoor area a touch of Mediterranean flair with theUnopiu extension pergola Solaire. This elegant pergola made of galvanized iron in a timeless graphite gray is not only a visual highlight, but also a functional element that provides shade and creates an inviting atmosphere. With its generous dimensions of 376 cm wide and 320 cm deep, it offers enough space to create cozy seating areas or dining areas outdoors. The post height of 250 cm can be individually shortened to meet your specific needs.

Thanks to the versatility of thisSolaire collectionA “tailor-made” ambience can be created that meets all requirements and wishes. The curvedUnopiuThe Solaire extension pergola can be extended with extension elements of 186 cm.

For the roof, you can choose between a non-adjustable roof or a sliding roof made of fabric covering and bamboo mats.

Thepost dimensionsare Ø 3cm and height 250cm.
The corresponding height on the wallfor the curved pergolas is 310cm for the 320cm deep model.
Mounting material not included.

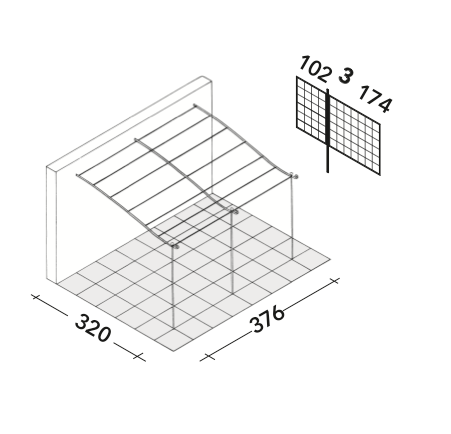

dimension

Dimensions: B376 xT320 cm
Distance from wall to front post:3.02 m
Height on the wall:310 cm
Front post dimensions: O3.3 cm xH250 cm (post can be shortened)

Further information

material: Iron galvanized and powder-coated
Color: graphite gray
Mounting on the wall:Mounting material (screws, dowels...) not included
Attachment to the ground:For optimal support, the manufacturer recommends encasing the posts in concrete; alternatively, depending on the subsurface, ground fixing discs can be used
Optional accessories:
· Floor mounting discs(Fixing disc for a post on the ground complete with 3 expansion dowels 10 mm)
· waterproof tarpaulin(29% Polyester - 71% PVC), complete with fastening elements
· Spring-loaded roller blind with waterproof tarpaulin:(Kit for spring-loaded roller blind with waterproof white tarpaulin (29% polyester with 71% PVC coating), complete with graphite grey coated aluminium cover, spring mechanism and rails for attached pergolas and extensions)
· Spring-loaded roller blind with awning fabric(Kit for spring-loaded roller blind made of 100% natural-coloured acrylic fabric, complete with graphite grey coated aluminium cover, spring mechanism and rails for attached pergolas and extensions.
· Bamboo mats(Set of bamboo mats made from bamboo sticks with variable cutting diameter (from 1 cm to approx. 2 cm), connected with stainless steel wire, complete with fastening material)
· Extensions:eachB186 xT320 cm
Installation information optional spring-loaded roller blind: The box for spring-loaded roller blinds is 14 cm high. In addition, a distance of approx. 9 cm from the pergola must be maintained. It is important to maintain this height with PVC tarpaulins so that the water can drain away. With acrylic roller blinds, the distance of 9 cm can be reduced a little if you do not have much space, as these are not waterproof.

installation
Assembly instructions for the Unopiu extension pergola Solaire
Installation instructions for the Unopiu Solaire spring-loaded roller blind
Unopiu CAD file: 2D for the extension pergola Solaire 320x376cm

Herstellerinformation

Name: Unopiù S.p.A.
Adresse: Strada Statale Ortana, km 14,500, 01038 Soriano nel Cimino (VT), Italien
Elektronische Adresse: info@unopiu.de
